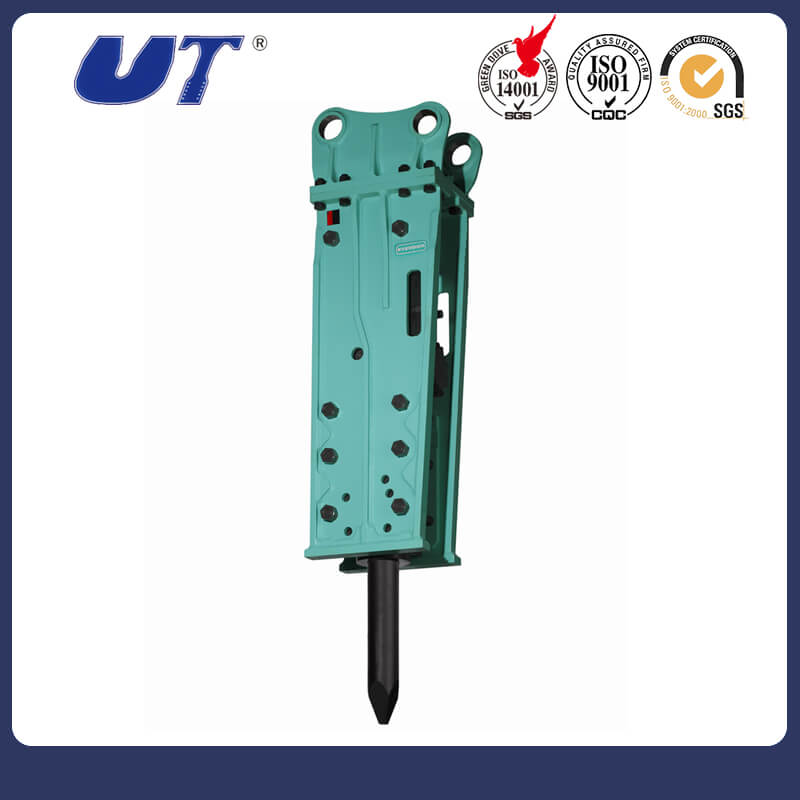

Top Type Hydraulic Breaker
  • Top Type Hydraulic Breaker
  • Top Type Hydraulic Breaker
  • Top Type Hydraulic Breaker
  • Top Type Hydraulic Breaker

Top Type Hydraulic Breaker

  • Warramty2 years
  • OEMYes
  • ODMYes
  • ColorGreen, Yellow, Red, Black, Orange, White

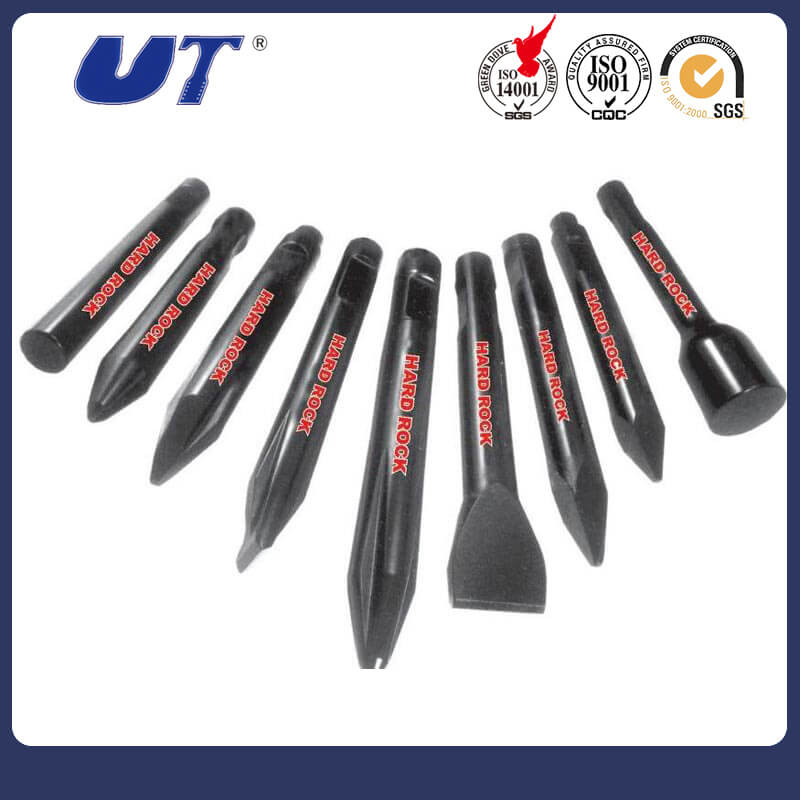

  • Chisel42CrMo

We're here to help:Easy ways to get the answers you need

Feature

Tope Type Hydraulic Breaker


Top Type- Light Series 45-100

UTHB-T-45

Cylinder Weight

62

kg

Total Weight

108

kg

Overall Length

1294

mm

Required Oil Flow

20-40

L/min

Working Pressure

90-120

Kg/cm2

Impact Rate

700-1200

b.p.m

Chisel Diameter

D45

mm

Application Excavator

0.8-1.5

ton

UTHB-T-53

Cylinder Weight

80

kg

Total Weight

169

kg

Overall Length

1436

mm

Required Oil Flow

20-50

L/min

Working Pressure

90-120

Kg/cm2

Impact Rate

600-1100

b.p.m

Chisel Diameter

D53

mm

Application Excavator

2.5-4.5

ton

UTHB-T-70

Cylinder Weight

146

kg

Total Weight

267

kg

Overall Length

1598

mm

Required Oil Flow

40-70

L/min

Working Pressure

110-140

Kg/cm2

Impact Rate

500-900

b.p.m

Chisel Diameter

D70

mm

Application Excavator

4-7

ton

UTHB-T-75

Cylinder Weight

207

kg

Total Weight

357

kg

Overall Length

1787

mm

Required Oil Flow

50-90

L/min

Working Pressure

120-150

Kg/cm2

Impact Rate

400-800

b.p.m

Chisel Diameter

D75

mm

Application Excavator

6-9

ton

UTHB-T-85

Cylinder Weight

263

kg

Total Weight

597

kg

Overall Length

2109

mm

Required Oil Flow

60-100

L/min

Working Pressure

130-160

Kg/cm2

Impact Rate

400-800

b.p.m

Chisel Diameter

D85

mm

Application Excavator

7-14

ton

UTHB-T-100

Cylinder Weight

444

kg

Total Weight

889

kg

Overall Length

2284

mm

Required Oil Flow

80-110

L/min

Working Pressure

150-170

Kg/cm2

Impact Rate

350-700

b.p.m

Chisel Diameter

D100

mm

Application Excavator

11-16

ton


Top Type- Medium Series 125-155

UTHB-T-125

Cylinder Weight

562

kg

Total Weight

1636

kg

Overall Length

2634

mm

Required Oil Flow

90-120

L/min

Working Pressure

150-170

Kg/cm2

Impact Rate

350-650

b.p.m

Chisel Diameter

D125

mm

Application Excavator

15-18

ton

UTHB-T-135

Cylinder Weight

713

kg

Total Weight

1852

kg

Overall Length

2713

mm

Required Oil Flow

120-180

L/min

Working Pressure

160-180

Kg/cm2

Impact Rate

350-500

b.p.m

Chisel Diameter

D135

mm

Application Excavator

18-21

ton

UTHB-T-140

Cylinder Weight

793

kg

Total Weight

2081

kg

Overall Length

2824

mm

Required Oil Flow

120-180

L/min

Working Pressure

160-180

Kg/cm2

Impact Rate

350-500

b.p.m

Chisel Diameter

D140

mm

Application Excavator

18-26

ton

UTHB-T-150

Cylinder Weight

954

kg

Total Weight

2689

kg

Overall Length

3106

mm

Required Oil Flow

150-210

L/min

Working Pressure

160-180

Kg/cm2

Impact Rate

300-450

b.p.m

Chisel Diameter

D150

mm

Application Excavator

25-30

ton

UTHB-T-155

Cylinder Weight

1102

kg

Total Weight

2986

kg

Overall Length

3133

mm

Required Oil Flow

180-240

L/min

Working Pressure

160-180

Kg/cm2

Impact Rate

300-450

b.p.m

Chisel Diameter

D155

mm

Application Excavator

28-35

ton


Top Type- Heavy Series 165-210

UTHB-T-165

Cylinder Weight

1238

kg

Total Weight

3541

kg

Overall Length

3420

mm

Required Oil Flow

200-260

L/min

Working Pressure

160-180

Kg/cm2

Impact Rate

250-460

b.p.m

Chisel Diameter

D165

mm

Application Excavator

30-45

ton

UTHB-T-175

Cylinder Weight

1694

kg

Total Weight

4228

kg

Overall Length

3632

mm

Required Oil Flow

210-290

L/min

Working Pressure

160-180

Kg/cm2

Impact Rate

150-300

b.p.m

Chisel Diameter

D175

mm

Application Excavator

40-55

ton

UTHB-T-180

Cylinder Weight

1815

kg

Total Weight

4519

kg

Overall Length

3743

mm

Required Oil Flow

270-350

L/min

Working Pressure

160-180

Kg/cm2

Impact Rate

150-250

b.p.m

Chisel Diameter

D180

mm

Application Excavator

45-60

ton

UTHB-T-190

Cylinder Weight

1892

kg

Total Weight

4850

kg

Overall Length

2214

mm

Required Oil Flow

270-290

L/min

Working Pressure

180-210

Kg/cm2

Impact Rate

110-200

b.p.m

Chisel Diameter

D190

mm

Application Excavator

45-75

ton

UTHB-T-210

Cylinder Weight

2149

kg

Total Weight

7011

kg

Overall Length

4295

mm

Required Oil Flow

350-450

L/min

Working Pressure

180-200

Kg/cm2

Impact Rate

120-220

b.p.m

Chisel Diameter

D210

mm

Application Excavator

70-100

ton

parameter

Product content to be updated ......
